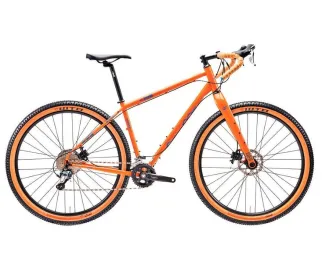

Cinelli Hobootleg Geo SUNRISE 2023 TIAGRA 2X

Contact us to find out about the availability of sizes and delivery dates.

The new Hobootleg GEO in its most mature and adventurous version ever: flared handlebar, wheels up to 29×3.0, new Columbus Adventure carbon fork with double rake system, internal guides for hub dynamo assembly, eyelets for bikepacking and thru 15mm axle.
Assembly with two Shimano front chainrings and the efficiency of the hydraulic disc brake caliper combined with the mechanical linkage for easier maintenance.
Three years of testing with the most discerning travelers have resulted in revised geometry and these new features to make the Hobo Geo the perfect self-sufficient off-road adventure travel machine.

Born in the great continental crossings, the   new GEO   comes from the experience of the previous Hobo models to guarantee a more precise and performing guide on any type of terrain and in any condition. Hobo GEO was born for pioneers and for all those who want to test themselves in a self-sufficient journey. Created not to fear slopes and mountain paths, it returns a high-performance driving experience and is extremely controllable even when fully loaded.

The Hobootleg GEO was born for those who want to challenge themselves in self-sufficiency travel. Created to challenge mountain climbs and trails, it offers great driving performance on single tracks and is extremely steerable even when fully loaded. Now featuring the new Columbus Adventure Carbon fork with dual rake system, internal dynamo cable guides, bikepacking mounts and 15mm boost thru axle.

DOUBLE-RAKE NEW COLUMBUS CARBON FORK

The Columbus Adventure carbon fork moves the Hobo Geo into a new generation of adventure bikes. The variable rake, together with the large load capacity, allow you to meticulously adapt reactivity and handling, based on terrain and load.

NEW SADDLE

The new WTB Volt saddle, with the characteristic whale tail and chromoly rail, adds comfort and durability, for long hours in the saddle.

WTB TIRES

The generous wheel clearance up to 29×3.0 accommodates 29”x2.25 WTB Ranger tyres.

Technical features

SIZES (CF) / SIZES
S (40) M (46) L (51) XL (55)

FRAME / FRAME
COLUMBUS Cromor Double Butted Steel

HEADSET / HEADSET
ZS 44/28.6 | EC 44/40

SEATPOST / SEAT POST
Ø27.2mm

SEAT CLAMP / SEAT CLAMP
Ø29.8mm

STANDARD MOVEMENT CASE / BB
BSA 73mm

FRONT DERAILLEUR / FT. DERAILLEUR
Clamp-on / Ø28.6mm

CABLE ROUTING / CABLE ROUTING
External, full length housing

COLOR / COLOR
Indigo

WHEEL CLEARANCE / TIRE CLEARANCE
up to 29x3.0 / 27.5x3.0

FORK / FORK
COLUMBUS Futura Adventure Carbon tapered

WEIGHT / WEIGHT
Frame 2500g / Fork 550g (uncut)

STANDARD BRAKES / STANDARD BRAKES
Post mount disc brake
Rotor size up to 180mm

HUB SPACING/HUB SPACING
Rear TA Ø12x148mm / M12x1,5 L167mm skewer
Front CT Ø15x110mm / M15x1,5 L150mm skewer

FEATURES/FEATURES
Rear rack eyelets / Anything cage eyelets / Dynamo housing / Double Rake System

ATTACK / STEM
CINELLI 6061 Stem - Size 90 (S/M) 100 (L/XL)

CURVE / HANDLEBAR
CINELLI Large / Ø 31.8 / 560mm (S/M/L/XL)

CRANKSET / CRANKSET
Prowheel 36/26T - Size 170 (S/M) 175 (L/XL)

SEATPOST / SEATPOST
CINELLI 6061 Seat Post / Ø27.2 / L350

TAPE / TAPE
CINELLI Cork

CENTRAL BRACKET / BOTTOM BRACKET
SHIMANO / BSA 73mm

DERAILLEUR / FT. DERAILLEUR
Shimano Deore FD-M4100-M / Side swing / Front pull

BRAKES / BRAKES
TRP HY-RD (MD-C705C) / TRP TR29 160mm rotors

SPROCKET SET / CASSETTE
Shimano cs-hg500-10 / 10 Speed / 11-34T

GEARBOX / REAR DERAILLEUR
Shimano Tiagra / 10 Speed / Long Cage

COMMANDS / SHIFTERS
Shimano Tiagra

WHEELS / WHEELS
SHINING / 29" / Formula hubs / 6 Bolt

RUBBERS / TIRES
WTB Ranger / 29X2.25 / Tan sidewall

HEAD SET / HEAD SET
FSA Orbit ITA 1"-1/8 - 1"-1/2

CHAIN / CHAIN
KMC (X10)

SADDLE / SADDLE
WTB Volts

COMMANDS

Shimano Tiagra ST-4700
